A new acoustic bass guitar. 12 string to acoustic bass guitar conversion.

 I was recently gifted an old, 1970's, Tokai, 12 string guitar that was beyond economic repair.

I had wondered for years whether or not a large bodied acoustic 12 string would lend itself to an acoustic bass conversion. So I set about finding out.

I made a plan drawing first to establish important relationships,  scale length, overall neck length, how many frets to the body, bridge and saddle position, tuner peg head shape and layout, etc.

I settled on a 34" scale length.

Once the design was complete I began the process of pulling the old 12 string apart.

Most of these Japanese guitars from this period are made from laminates.

The soundboard looks convincingly like solid spruce. The body, back and sides look like solid mahogany. It is only when you begin to disassemble them that they reveal their true makeup. All body components, top back and sides are plywood comprising spruce, poplar, spruce and mahogany, poplar, mahogany panels.

As with other recent blog entries I try but fail to get the pics to load in the correct sequence. Please scroll to the bottom and the read upward to get the full construction story.

This is my 1:1 scale drawing.
I considered a cutaway but abandoned the idea.

The completed Bass, it's a great bass to play,
its surprisingly rich and loud as well.
I replicated the pick guard design from my previous bass build.
the thumb-rest is and old ebony piano key.

With its fresh coat of Aztec gold metallic lacquer.

The head stock has an overlay of maple then burl
mahogany veneer.

Under a coat of primer.

The back of the neck is coated with Burnt umber
lacquer

I wanted to keep the top its natural spruce.
i just couldn't conceal the scarring from the
old bridge.

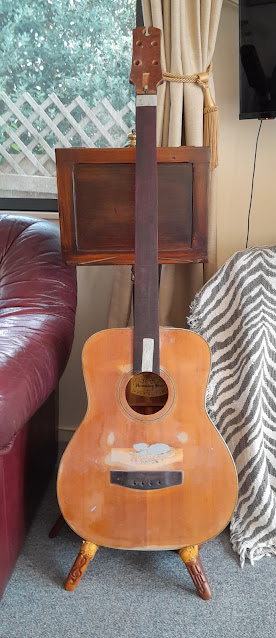

A trial fit of strings to achieve the correct saddle position.

Here you can see the subtle pin line of maple
under the burl mahogany laminate.
I welded an extension onto the existing truss rod
The nut is of deer antler.

Masking & filling in preparation for paint.

The back gets glued back on.

This image reveals the web bracing that I glued in
to support the neck block to the bracing.
you can also see my piezo transducer pickup positions.

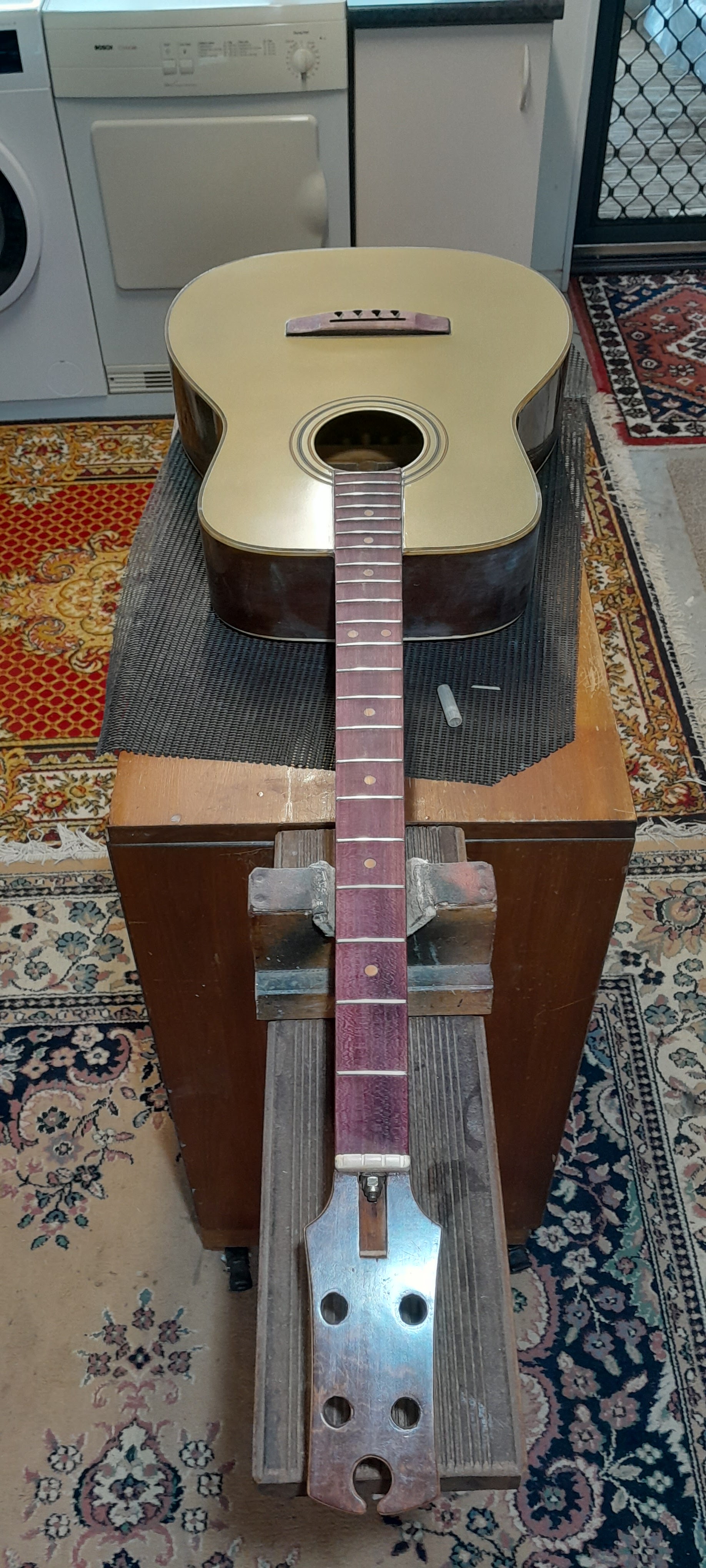

Here I use a long straight edge beam to
glue on the fret board and to determine
the correct fret board alignment to the bridge
prior to gluing the back in place.

Out of sequence, this image shows the difference
between this bass and my previous build.

Bridge is glued into place. Fret board is taped into position.

This image reveals my pick up installation.

Fret board is of scorched purple heart.
I cut the fret positions after using the Stew Mac
fretboard calculator. In this case 22 frets.

I have a philosophy of recycling objects for new uses.
the entire guitar is built on this ideal.
here and old stainless steel milk frother plunger
is modified to create a 1/4" output jack plate.

The neck and peg-head extension is fabricated from
Cuban Mahogany. I chose to create a volute at the weakest
point of the neck. The existing 12 string neck is of a
variety of mahogany, most likely Meranti as is of the
correct dimension to allow for the new graft to be continuous.

My new bracing pattern and bridge plate.

Another view of the neck scarf joint during shaping.

Pressing in the truss rod batten.

A preliminary alignment check of neck/bridge
geometry as the fret board gets glued into place.

Fret board gets dry fitted in place.

Dry fit of new tuning keys and fret board.

Dry fit of peg head/neck extension.

Peg head/neck extension in Cuban Mahogany
with truss rod channel routed out.

New bracing glued in and voiced.

Trial layout of new bracing pattern.

Out with the old bracing, not at all suited to bass.

The back needed several braces re-securing.

The Tokai 12 string with its back sawn off
and head stock trimmed

Fret board with slots cut, is of purple heart.

The peg-head overlay is of Burl mahogany veneer
with an underlay of maple veneer.
machine head holes freshly drilled.

second view of trial fit of scarf jointed
neck extension.

View of trial fit of scarf jointed
neck extension.

setting up the correct gluing angle for the
scarf jointed/neck extension. The angle of the
scarf joint was determined by the old
peg-head angle.

An anxious moment dry fitting the neck extension.
its got to be right!

My raw cut of the new mahogany neck extension.

The original guitar.
A mid 1970s, Tokai 12 string.
the truss rod was maxed out, the neck needed a reset,
the soundboard had bellied up around the bridge and
the neck had partially collapsed into the sound hole.
Well beyond economical repair.

Restoration of a Thompson electric guitar.



Read from the bottom up for the sequence of restoration.

This guitar was custom built for my friend Aaron 30 years ago by Luthier Tony Thompson when he was living in Ireland.

Aaron, the owner has developed considerable lutherie skills of his own over the years and is particularly clever at repairing anything electronic.

We discussed a course of action to correct the dimensional instability of the neck and I embarked on a considerable program of restoration, particularly of the neck which had twisted. The truss rod was also on its way out of the back of the neck near the peg head.

This Thompson guitar is a

small body, Telecasterish design.

It is built from the usual tonewoods

associated with an electric guitar,

maple, rosewood, etc.

Aaron tells me "the guitar plays itself"!
the first semi-automatic guitar.
I'm just glad he likes it.

The lacquered red body had multiple

large chips which I filled. I found a lacquer based nail polish in the exact same red so touch up with my airbrush was relatively straight forward.

The neck is refitted to the body after some modifications
to the neck pocket and shimming to achieve the right
string height.

The frets & side dot markers go in.

Building up the coats.

The tinted lacquer application.

Now for touch up and lacquer. A project like this
goes through a traumatic breaking and wrecking
phase before it starts to look good again!

The fingerboard gets glued back in place.

The extra 1mm added to the neck width forced me to
have to bind the neck which I also achieved
with 1.5mm maple veneer strips

I repaired the damage partially by gluing
a laminate of walnut veneer to the underside.

The finger board was damaged when I removed it

There was nothing particularly symmetrical about
this neck, particularly the position of the truss rod
slot.

Once the neck came off the strong-back
jig, it was straight and true!

Next I applied a second layer of maple veneer strips
in the opposite direction.

I then began the process of cutting .5mm thick strips
of maple veneer, adhering them diagonally onto the neck
with Titebond glue, a very slow and exacting process!

I chose to remove the frets and fingerboard
and to splint the neck onto a flat strong-back.
