Banjo Ukelele, "Sing a Song of Sixpence"

Our new (old) Banjo Ukelele

I've spent some time restoring a small, English made, banjo ukelele. It has no identifying manufacturers markings but I'm reassured that it is English by those who know. The instrument came into my possession when an elderly colleague of my father was moved into full time care by his family. Whilst clearing out his home they very kindly thought to gift me several items of musical and sailing interest.

The vellum had a small tear, the four pairs of strings were rusty and nasty and the neck was pulling away from the pan at an alarming angle under the tension of those wires. The instrument showed signs of having been played a good deal in it's early life as evidenced by the frets and ebony fingerboard which were well worn and the finish was abraded in many places down to the wood.  The banjo mandolin had also sustained some damage during its lifetime with some of the ebony on the head stock having come away and very poorly reattached. other damage included the tail piece which had been bent down, touching the vellum.

I stripped the instrument down to its last component parts and began assessing and cleaning the bits and pieces. I washed all the metal components and polished them before putting them all into a container saving all the original screws which were all re useable except the neck screws.

I unscrewed the neck from the pan and set them aside and prepared my workbench for the repair, re shaping and reattaching of the neck to the pan. I scraped the ebony finger board with a Stanley blade between the frets until all the recessed marks were gone. I then filed the frets.

Next I modified the machine heads by removing every second winder, reducing the number from 8 to 4. I refinished the ebony repair to the head stock. The ebony is very low grade and may even be faux. I begin to wonder if this company was scorching maple wood to near charcoal to create an ebony facsimile!

I refinished the distorted, mating wood surfaces and reattached the neck with suitable new fasteners.

I inspected the vellum and realised that it has sustained damage to the perimeter during manufacture due to a very poor casting finish on the cast iron tone ring and on the chromed brass  tension ring, each having very sharp edges. I removed the flesh hoop from the vellum by soaking it in water for a few minutes. The flesh hoop was a piece of galvanised wire, quite suitable to be reused.

I then set to with a fine file and emery paper to remove the sharp edges and the corners that bore down on the vellum. After achieving this I gave the raw cast iron tone ring a coat of iron oxide, red etch primer which was a suitable finish colour for the ring which can be seen through the pierced chrome tension hoop.

I had ordered a new vellum from a respected instrument maker in Auckland, Graham "Bones" Hurlock of Barebones folk instruments.

I needed a 14" vellum to cover the 8" hoop. I soaked the new vellum in cold water for 10 minutes then wrung it out before taking it over to the work bench. The process of mounting a new vellum can be found in several good instructional videos on You Tube.

Once the new vellum was mounted and dried I was able to reassemble the components.

The next step was to set up the instrument to take four new Aquila, tenor, Nylgut strings. The old nut had to come out and I needed to make a new saddle, I had a small piece of "tusk" resin nut stock left over from my bass guitar project which I shaped to fit.

I then selected a beautiful piece of kauri timber from which to form a saddle. The old saddle was genuine ebony but it was too low profile and the string spacing too narrow for the new set up, besides which it was grooved for 8 strings.

New vellum, Aquila strings and saddle, the red painted, iron tone ring can bee seen through the pierced chrome  tension hoop

The 12 little chrome "Z" clips fastened to the pan rim support the tension hoop screws.

I inlaid an old, New Zealand, 1936 sixpenny piece featuring an extinct native Huia bird, in keeping with my coin theme on my old drum kit. The new nut and the reworked machine heads can be seen in this image too.

The result is a very bright and playable little banjo ukelele, it does take a while for the strings to settle in as the ends are loop tied to the tail piece. The vellum is also prone to changes in temperature and humidity. The tone is wonderful though.

Harmen's Jazz bass project.

My Jazz bass is already well used, I love this instrument, it's the first electric bass that I've owned and played, the experts tell me it plays as well as a genuine Fender!

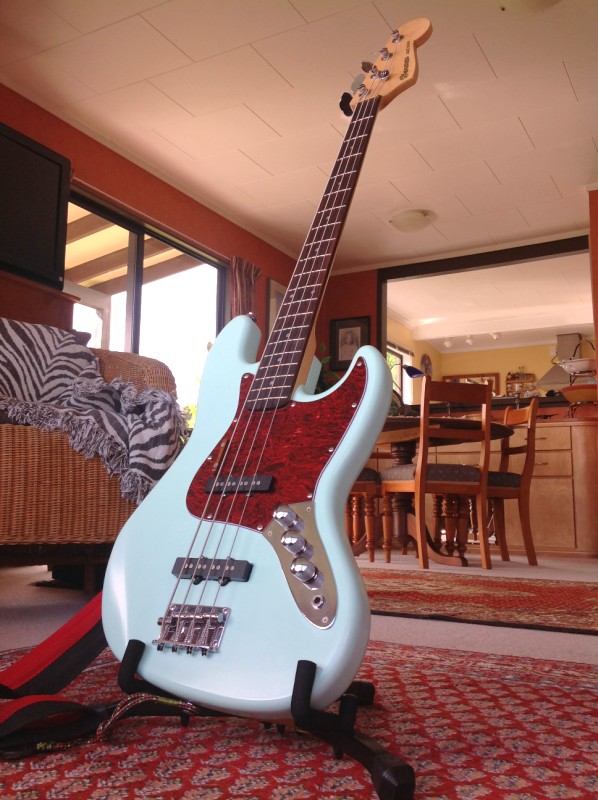

Mmmm, Seafoam green my favourite colour, brilliant contrast with the faux tortoise shell pick guard. It's odd though that the camera seems unable to capture the true colour, these images read as light blue to my eye. Those of you with an eye for detail will notice my custom thumb support above the E string, on the pick guard. I've developed a playing position dictated by my Taylor AB1 which has an extension horn, thumb rest on the finger board. The thumb rest is made from a piece of  high density, heart teak screwed on with the same type of  screws as those that fasten the pick guard.

The strap is a modified fashion accessory, black and red nylon webbing with my customized extensions of sailors cord. The Tiki on my strap is a plastic one that I have kept since 1971 when my family traveled to Europe. We flew some of the way on an Air New Zealand DC8. This Tiki was in the pack of give aways the airline presented to us children on the flight.

Strings are Martin Darco Electric Bass Guitar Strings, D9700L Light Gauge, Nickel wound.

I can have some fun with the head stock can't I? This one is customized with an old 30's Marconi radio cadet's badge depicting 3 soaring gulls in blue and white enamel on brass.

Harmen's Taylor AB1 fret less bass.

This is the result of my recent upgrade of my Taylor AB1. Frets removed and fret slots filled with wall nut veneer.

Strings are D'Addario Deep / Warm Black, Nylon, ETB92 XL, Tapewound,  Medium Gauge, Long Scale. I love them, they last much longer than phosphor bronze and they are perfectly quiet, no squeak at all, contributing to the beautiful "mmwwaa factor" that I like so much in a fret less bass. My fingers love them too, very easy on my tips and they leave no black residue and, most importantly of all, they're easy on the fingerboard. The sound is beautiful, slightly more mellow than phosphor bronze.

Luthier Steve Klien's Art Deco styling is just right to my eye.

My strap is a modified guitar strap which I lengthened by sewing on some lengths of sailors cord. I hid the stitching with a sterling silver and Paua ( NZ Abalone) shell thistle broach, gifted to me by my great friend Neill Duncan.

I customised my head stock with the addition of a tiny enamel on brass badge depicting a palm tree, very Polynesian.

Clive Franks, sound man extraordinaire pays us a visit in Rawene

 Clive and Di came to visit.

Di and Clive taking a photo opportunity in from of my latest sculpture Sati the elephant.

 To see more of Sati visit my art blog

Clive and I shared our enthusiasm for Fender Jazz Bass and he played and admired my Taylor AB1 fretless bass. Then he spotted my classic drum kit, thanks for the photos Clive.

photo courtesy of Clive Franks

photo courtesy of Clive Franks

The Jews Brothers Band reunite for Neill Duncan

We all came together in Auckland City to meet with Neill Duncan who had come over from Australia to visit a healing specialist. His arm amputated Neill was unable to sit in on Saxophone so he took up a drum stick and played along with the Band.

Nigel Gavin and Neill Duncan a few years ago.

Neill Duncan, Hershal, Harmen Hielkema @ Cafe One2One.

It was the best experience I've had for a very long time. The band went off and the audience came along for the ride!
